Specification:
Transmitter (Remote) :
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery (Battery included )
Material: PVC;
Button: 2 buttons;
Size: 60mm x 30mm;
Operating voltage: 3V ;
Operating Current: 12mA;
Transmitting power: 10mw;
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 20~50m

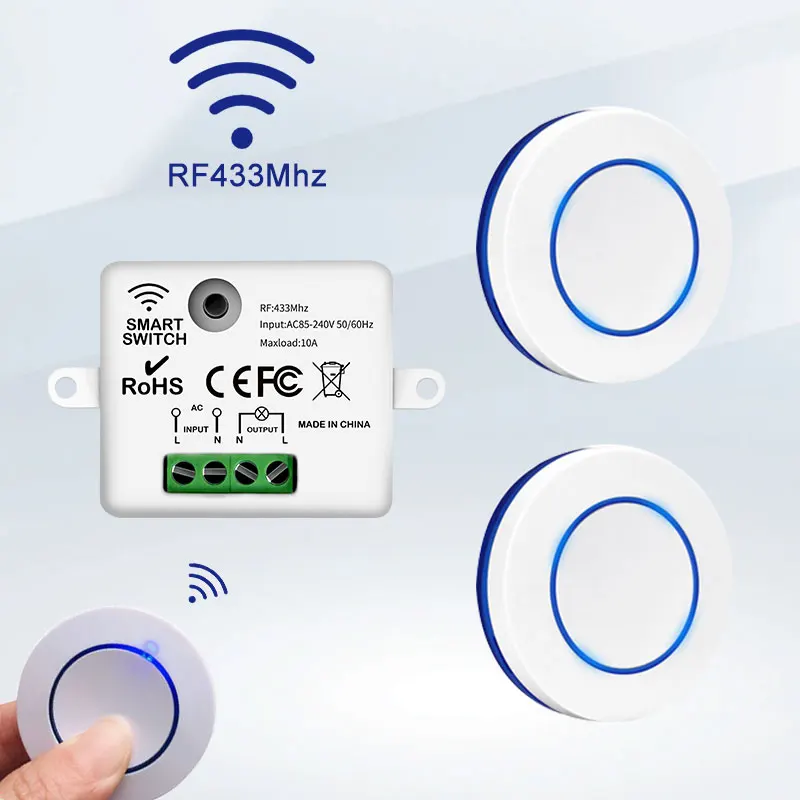

Controller (Receiver) :
Input Power: AC85-240V 60HZ/50HZ
Max current: 10 A
RF Frequency: 433Mhz
Working temperature:-30~+80
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: more than 50 m ( open space)
Remote storage:10pcs
Support remote type: Learning code 1527code
Size: 47.4*42*22.8 (mm)
Feature:
1. New mini round wireless panel switch(50mm*50mm*15mm)
2. 10A power: suitable for most equipment, safer to use
3. Mini body: can be directly installed in the switch bottom box, maintenance and installation are more convenient

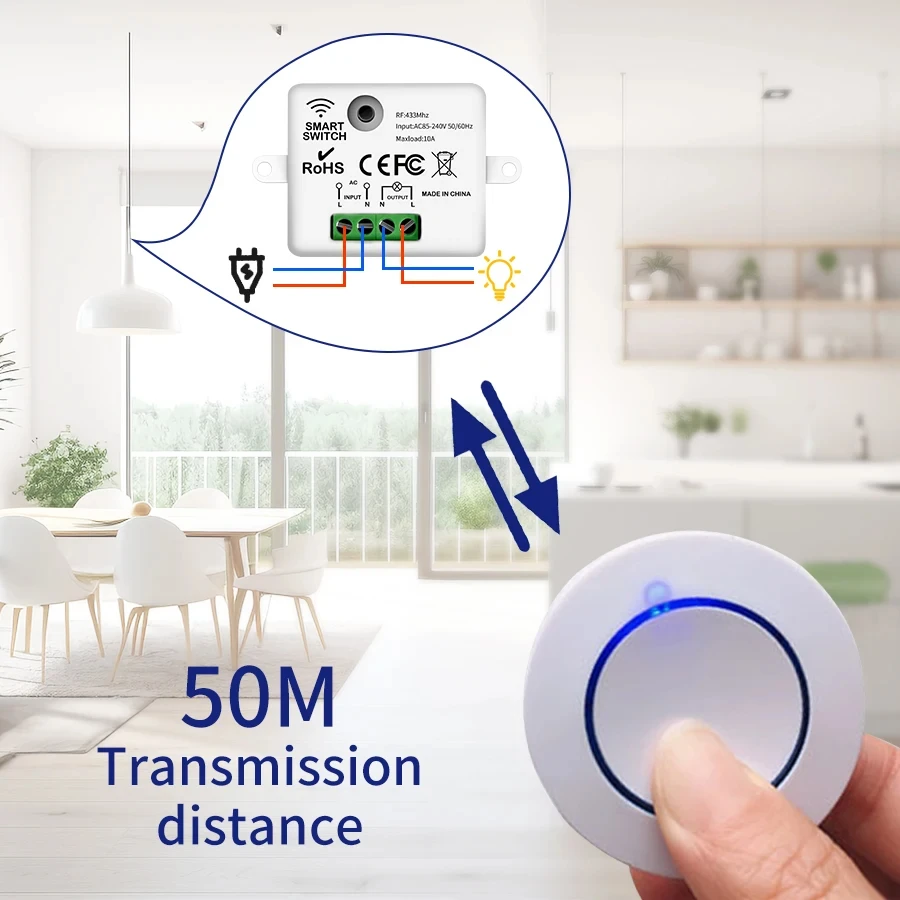

4. Up to 50 meters remote range.The more obstacles, the shorter the distance, the more serious the signal loss.
5. After turning off the power, turn on the power again, the device status is off.

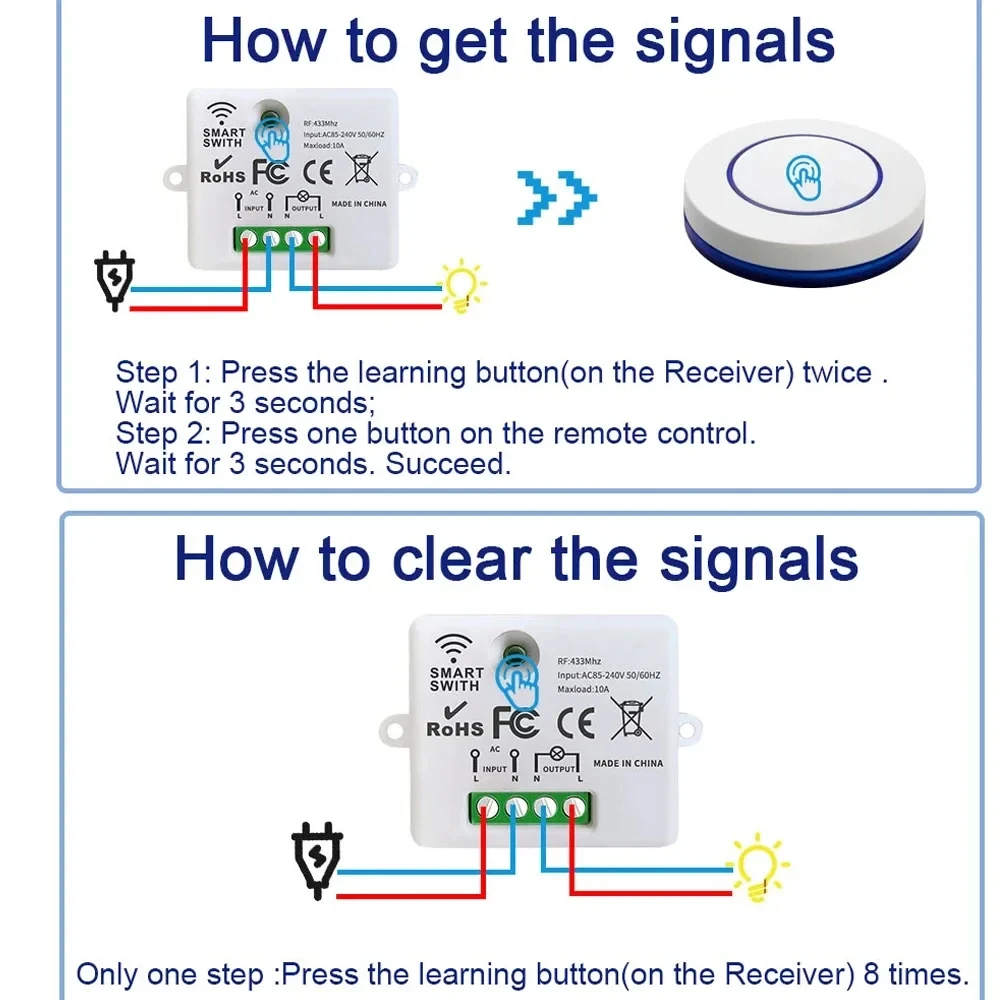

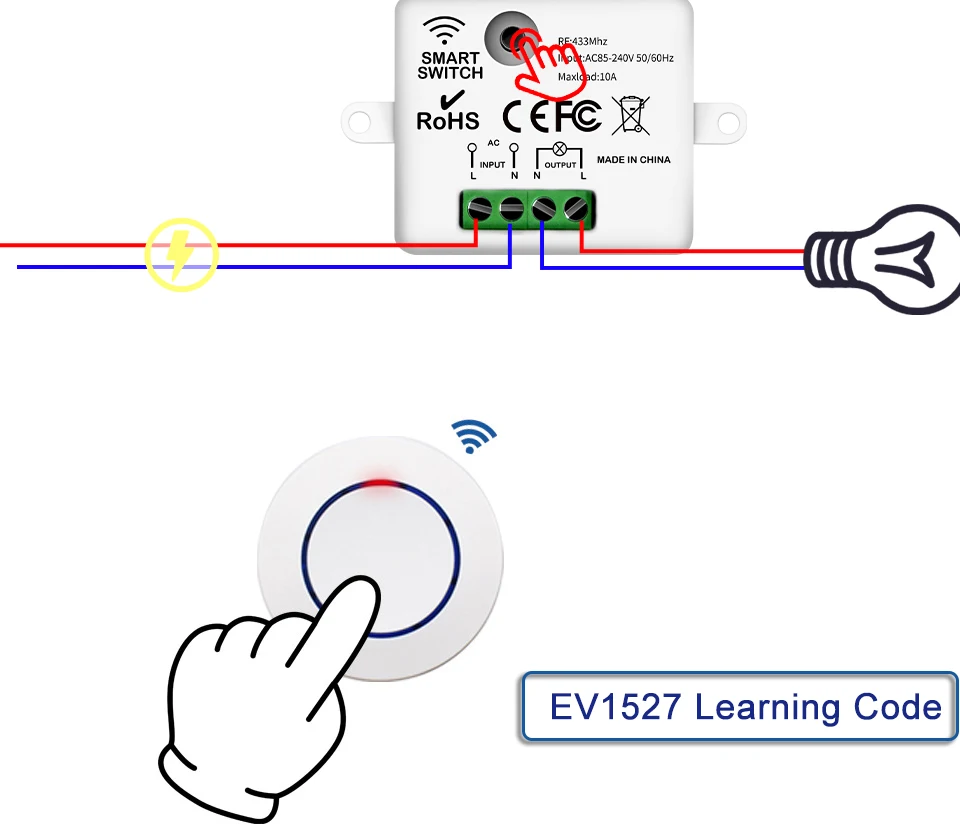

How to get the signals？
Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals？
Only one step :Press the learning button(on the Receiver) 8 times.
Note:

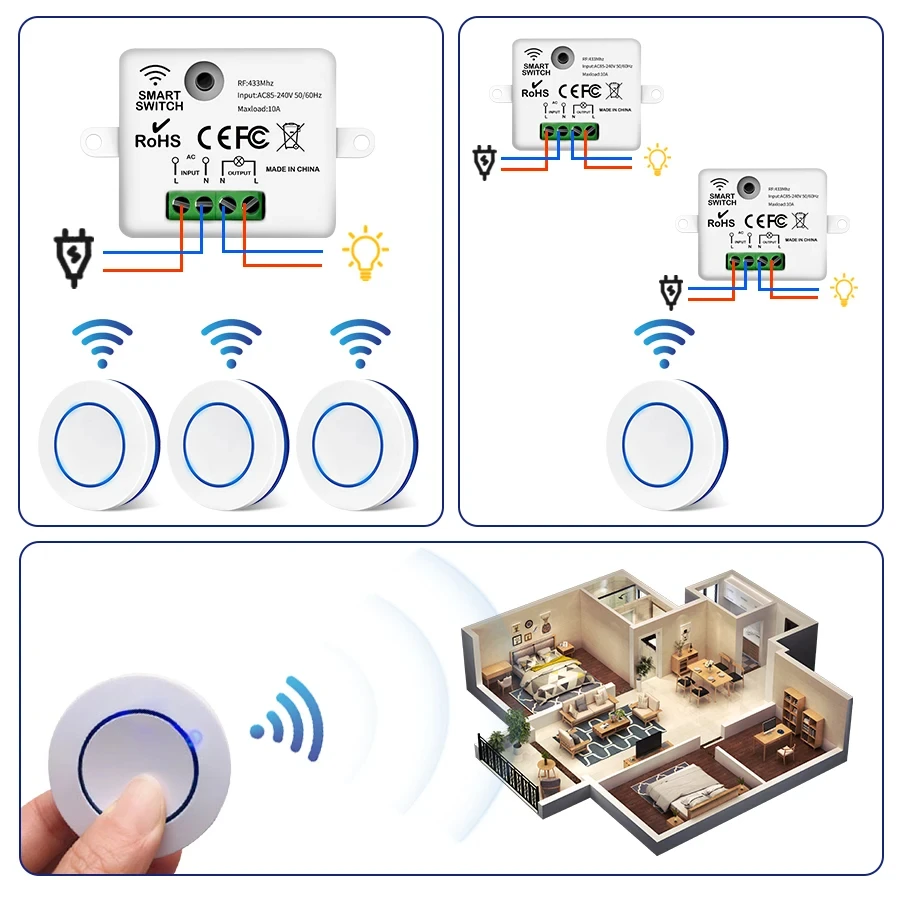

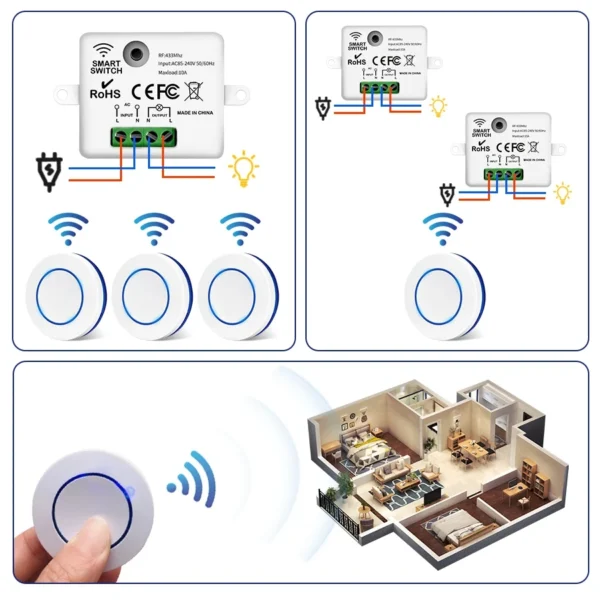

The relay controller is RF Receivers,the wall switch is RF only.Wall switch itself cannot control lights on off.It needs to work with rf receiver together.
